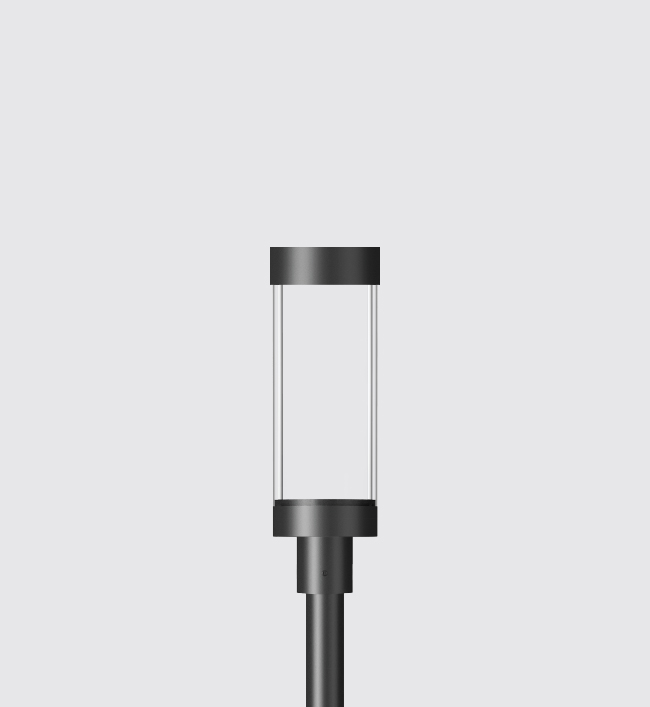

Lucy 2.0
Lucy post top luminaire, is an innovative design options to provide visual integration with the environment. High Brightness, LED Light source do not pose any environment risks. Designed for highest efficiency in terms of more lumens at reduced wattages contributing to a Greener World.

Product Description
• Luminaire made of die-cast aluminium with non corrosive SS fasteners.
• Die cast aluminium base with aluminium alloy of low copper content for effective corrosion resistance.
• Clear polycarbonate diffuser.
• Luminaire integrated with 30W LED.
• Suitable for mounting on 76mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-22790-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• Elegant, Functionality
• Environmental Friendly
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

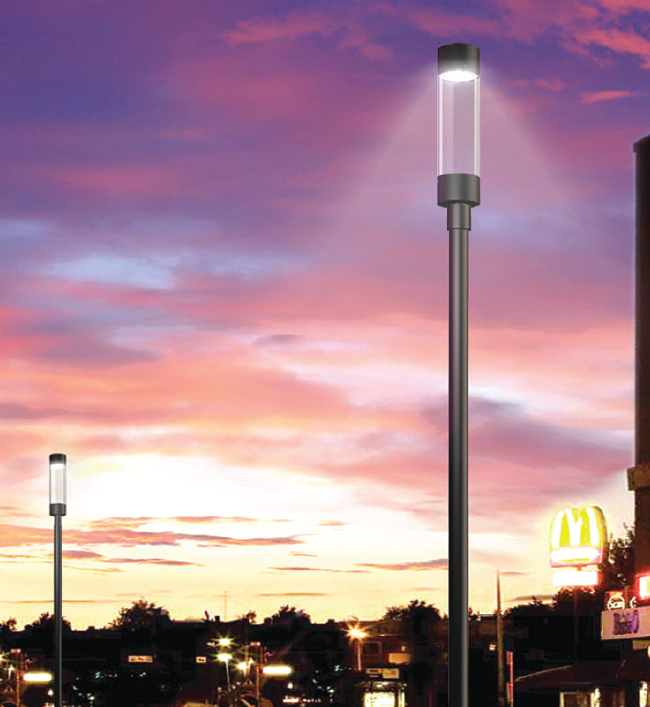

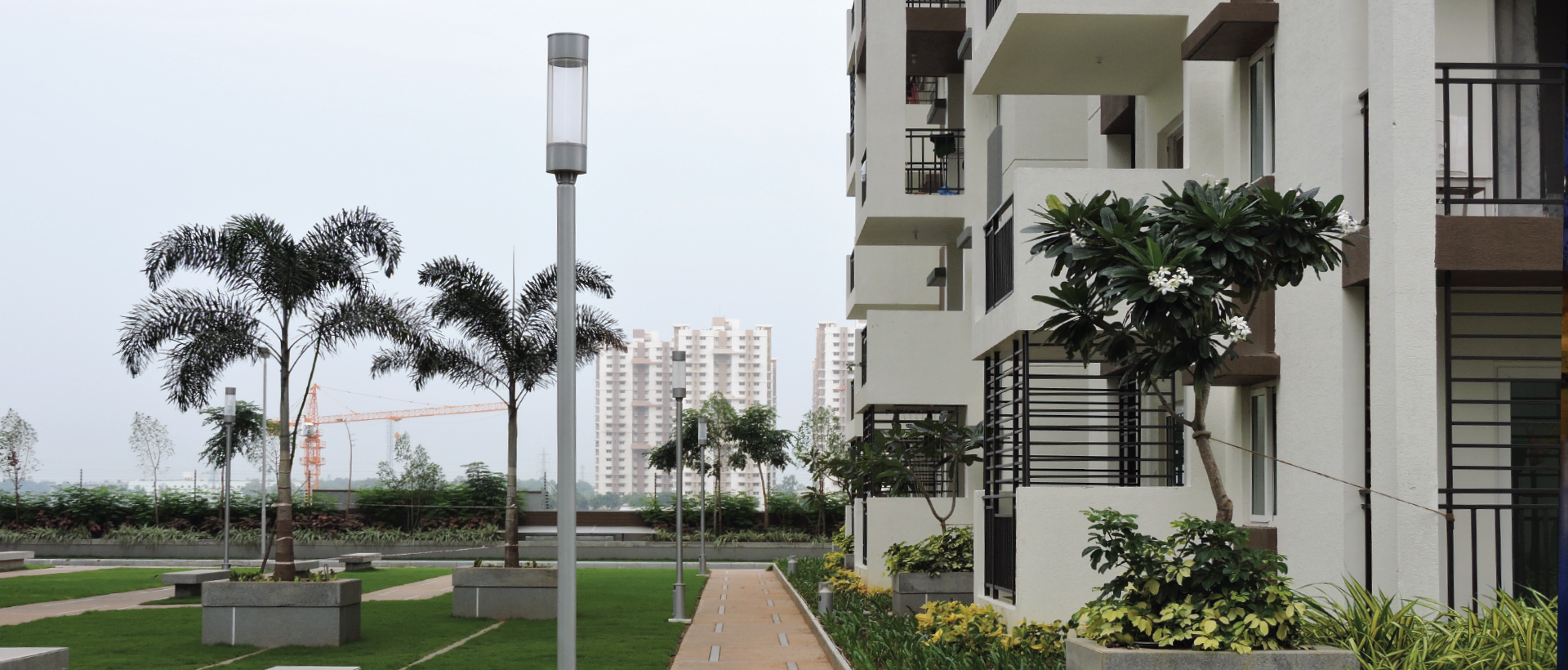

Illuminating parks, Gardens, commercial complex, Residential roadways, Walkways, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

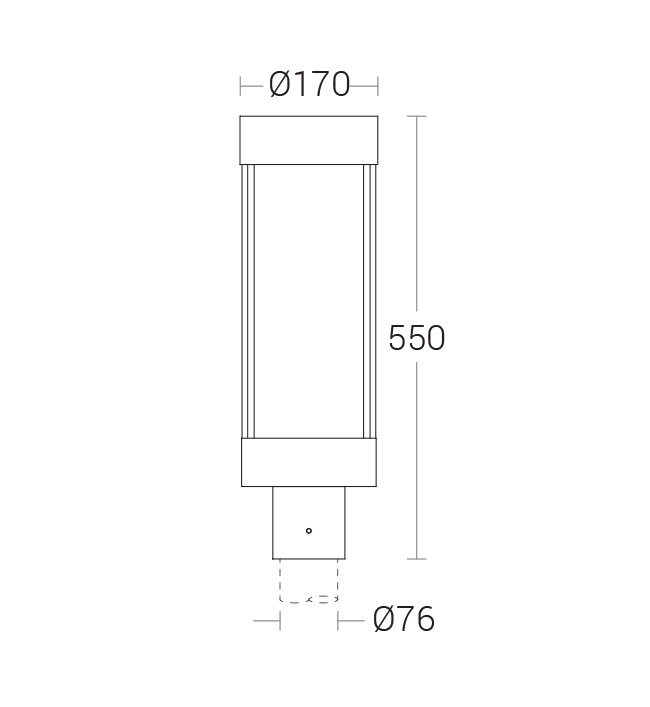

2279030W LED 2700K,3000K,4000K,5700K, Clear PolycarbonateØ170 x 550mmD3
22790.pdf
2279150W LED 2700K,3000K,4000K,5700K, Clear PolycarbonateØ170 x 550mmD3
22791.pdf
