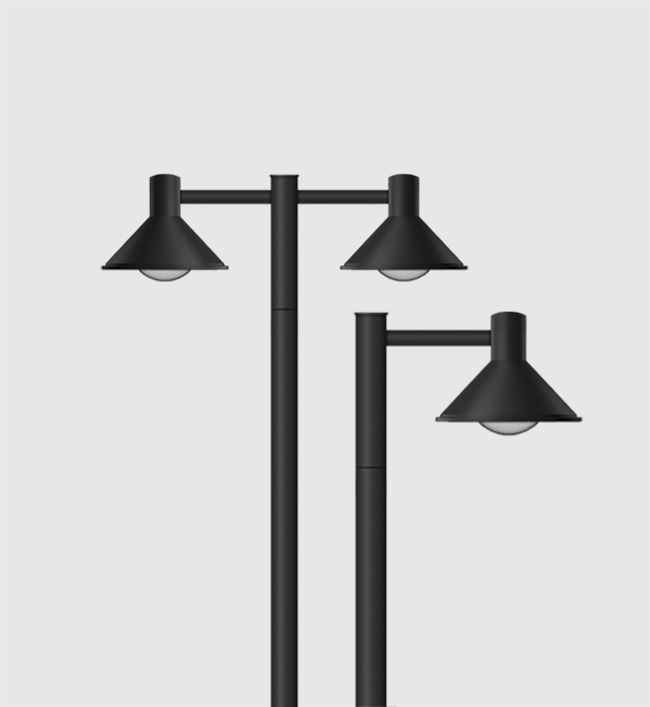

Karona Fort Mini pathway luminaires is a special purpose outdoor luminaire, integral model, totally weather proof aesthetically contoured. Improved long lasting protection against ingress of dust / moisture / insects inside optical compartment.

Material
Body : Spun aluminium & Extruded aluminium pipe
Impact Protection : IK05
Ingress Protection : IP65
Lens : Convex type clear acrylic
Optical : Slight regress in the optical assembly for better glare control

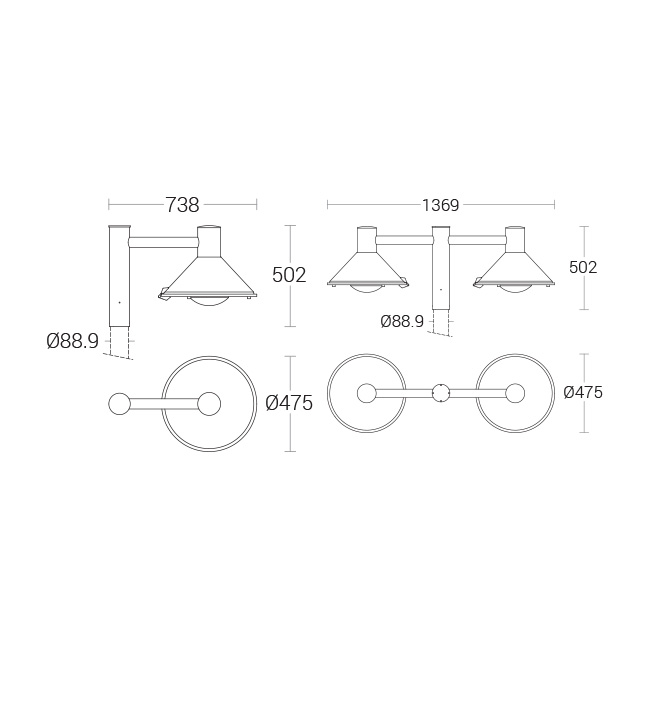

Mounting : Suitable for mounting on Ø88.9mm pipe

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 4KV

Product Configurations
Wattage : 30W / 50W / 60W / 100W
Light Distribution : Type II
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H

Area of Application

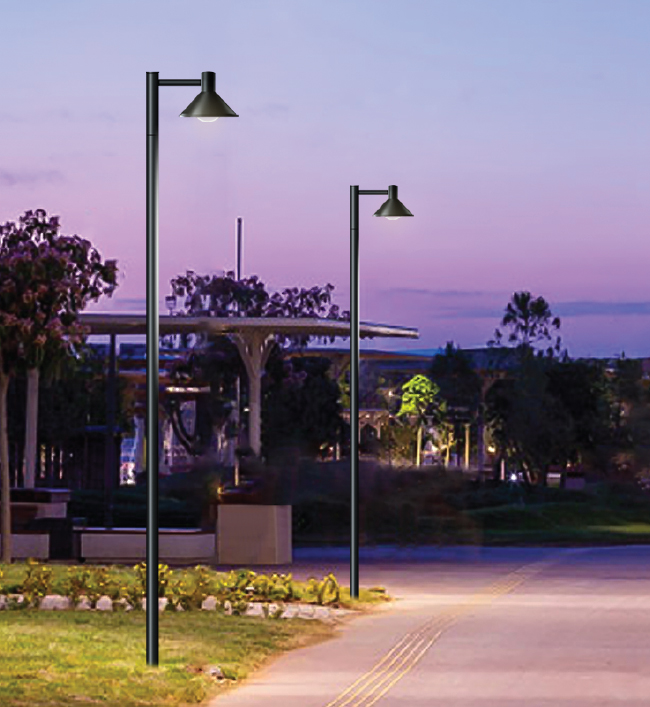

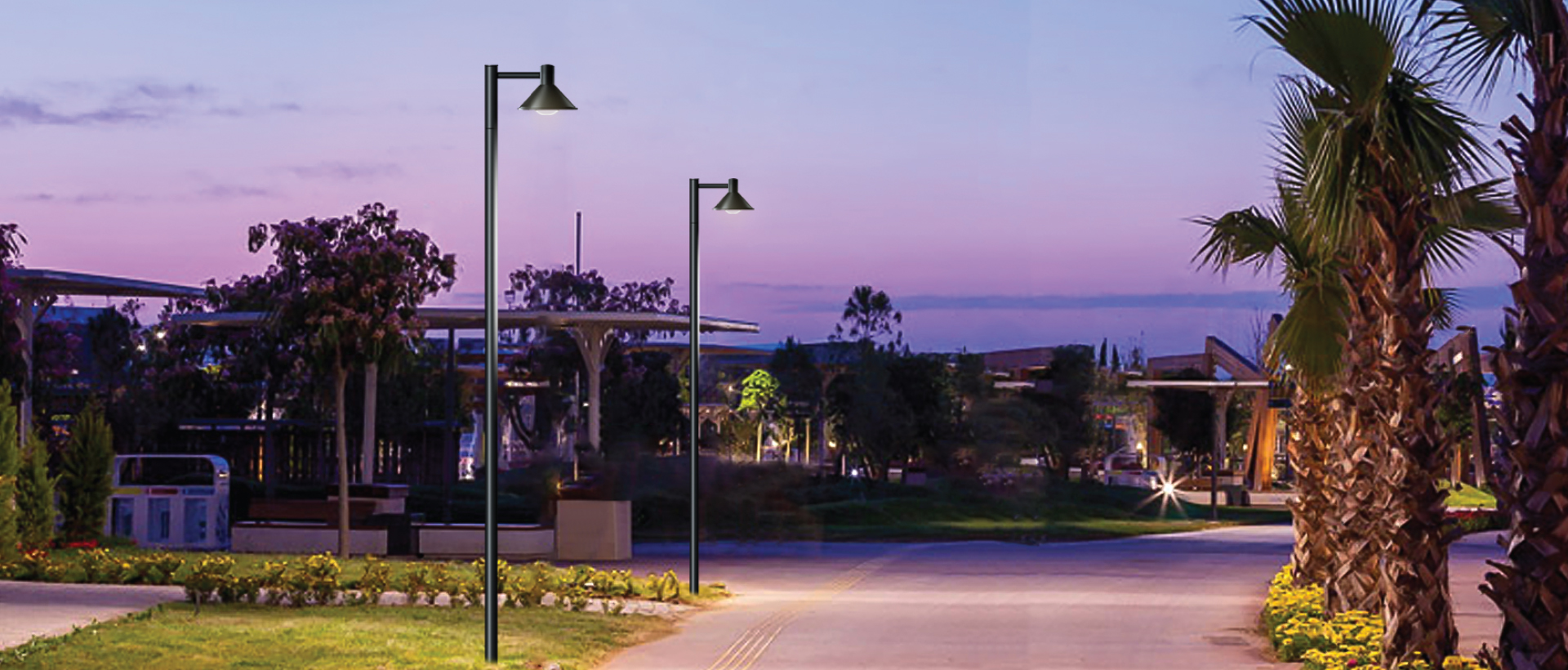

Illuminating parks, Gardens, Private driveways, Commercial complex, Pathways in Residential buildings & office complex.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
