Astral
Our modern heritage post top luminaire combines classic aesthetics. Equipped with high-performance light engines, it delivers superior illumination while optimizing energy efficiency. The robust construction ensures resilience against all weather conditions, promising long-term durability and consistent performance throughout its lifespan. Designed to provide maximum lumens with reduced wattages.

Product Description
• The luminaire comprises of spun aluminium top cover with decorative aluminium knob on top.
• Die cast aluminium base through supporting arms made of extruded aluminium.
• Diffuser placed into the provision formed on the pheriphery of the bottom cover.
• Non yellowing UV stabilized clear acrylic diffuser.
• Silicone gasket.
• Luminaire integrated with 30W / 50W LED.
• Luminaires suitable for mounting on 76mm OD pipe.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• CRI (Ra) : >70
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-25444-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Functionality
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

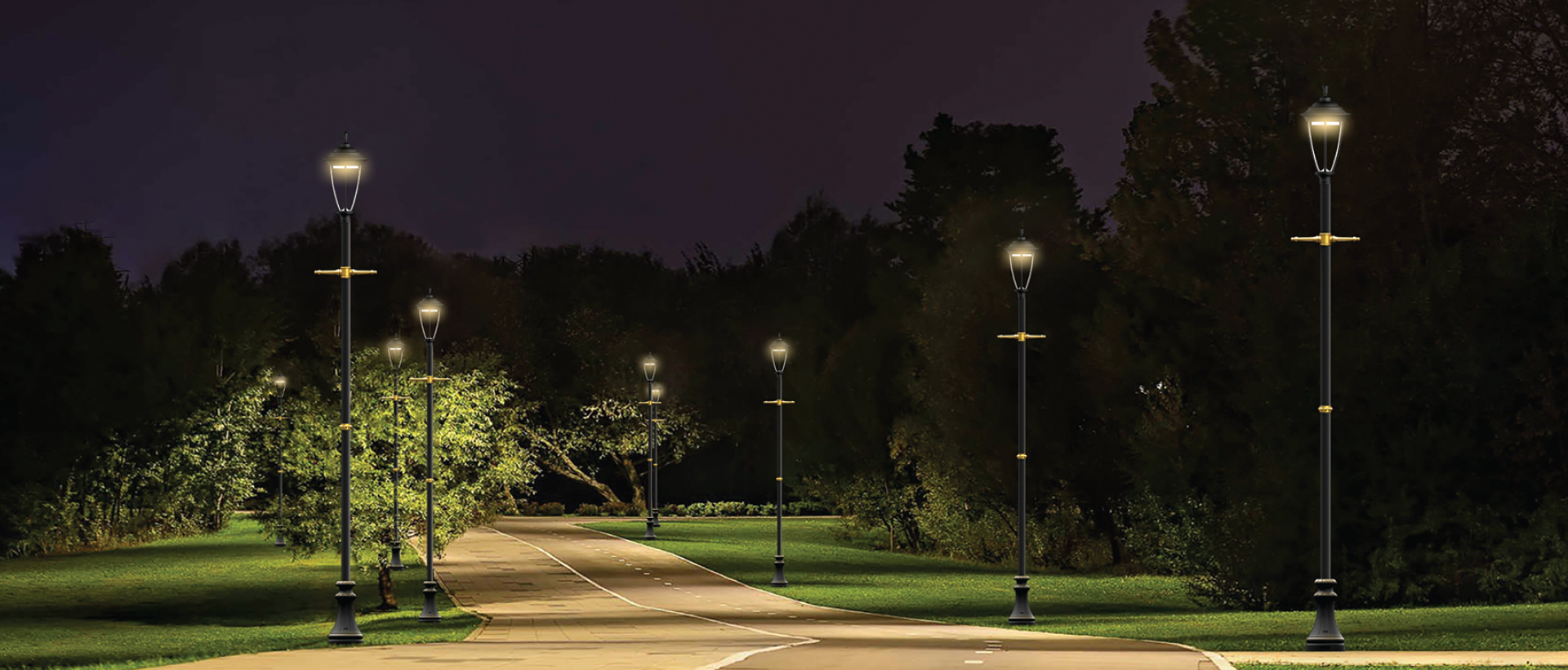

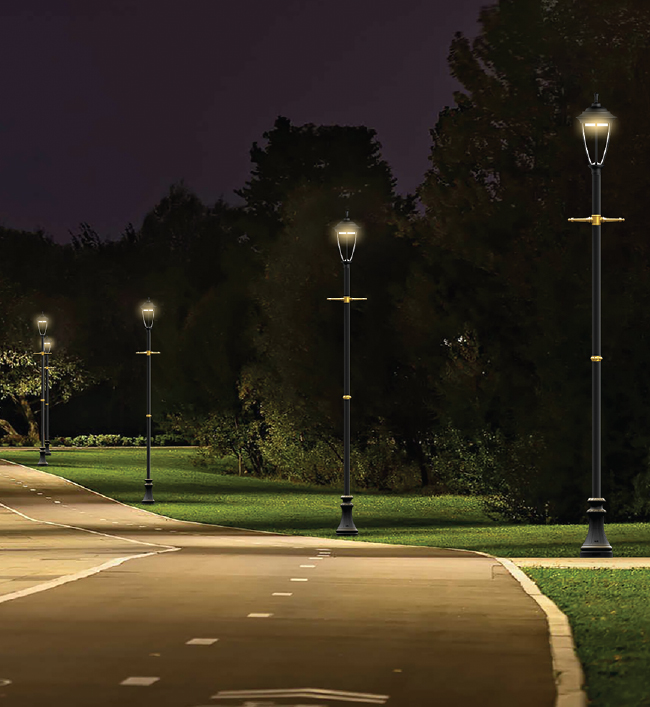

Illuminating parks, Gardens, commercial complex, Residential roadways, Walkways, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

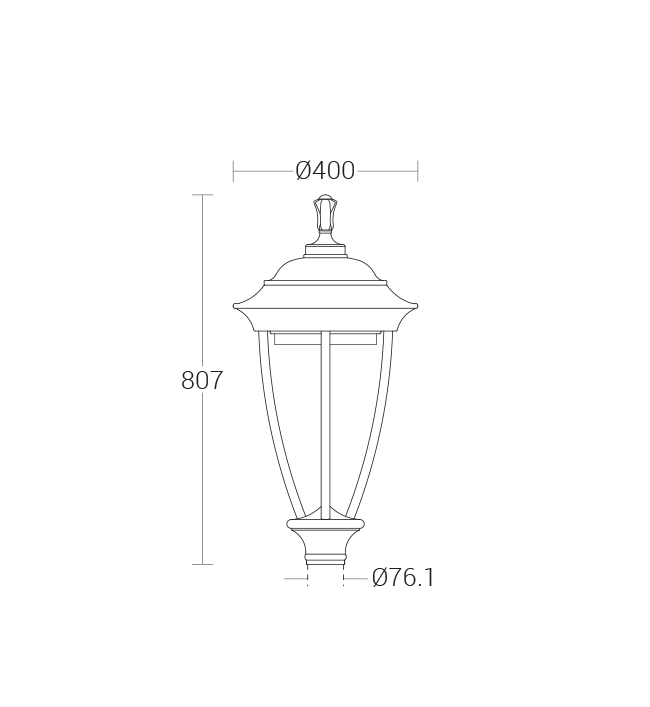

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
2449230W LED 2700K,3000K,4000K,5700K BA:Symmetrical, Clear AcrylicØ400 x 807mmD3
24492-BAsym-WW.IES
24492-BAsym-WW.PDF
24492.pdf
2452130W LED 2700K,3000K,4000K,5700K BA:Type II, Clear AcrylicØ400 x 807mmD3
24521.pdf
2452250W LED 3000K,4000K,5700K BA:Type II, Clear AcrylicØ400 x 807mmD3
24522.pdf
2544450W LED 2700K,3000K,4000K,5700K BA:Symmetrical, Clear AcrylicØ400 x 807mmD3
25444.pdf
25444.txt
