Polar Panel - 4 x 1ft
Polar Panel recess mounted, energy efficient slim LED panel luminaire, tailored to suit armstrong ceiling and elegantly designed fixture, ideally suited for office and software industry applications offers a uniform, glareless and soft lighting in the workspace. LED designed for highest efficiency in terms of more lumens at reduced wattages contributing to a Greener World.

Product Description
• LED ceiling recessed panel light - Indoor luminaire with soft & even light distribution
• Powder coated CRCA housing with aluminium front frame
• High efficiency translucent diffuser for glare free, uniform light distribution.
• The Luminaire Integrated with 40W LED.
• Cable entries for through-wiring of mains supply cable.
• Prewired with constant current LED driver and suitable for operation on
240V, 50Hz single phase ac supply.
• Ordering guide : KL-2287-CCT ( Colour Temperature )
• Available CCT : 3000K, 4000K, 6000K.

Product Benefits
• Versatile, Efficient and Aesthetics all in one.
• Attractive high quality housing & optics.
• Visual comfort with maximum energy saving.
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.

Area of Application

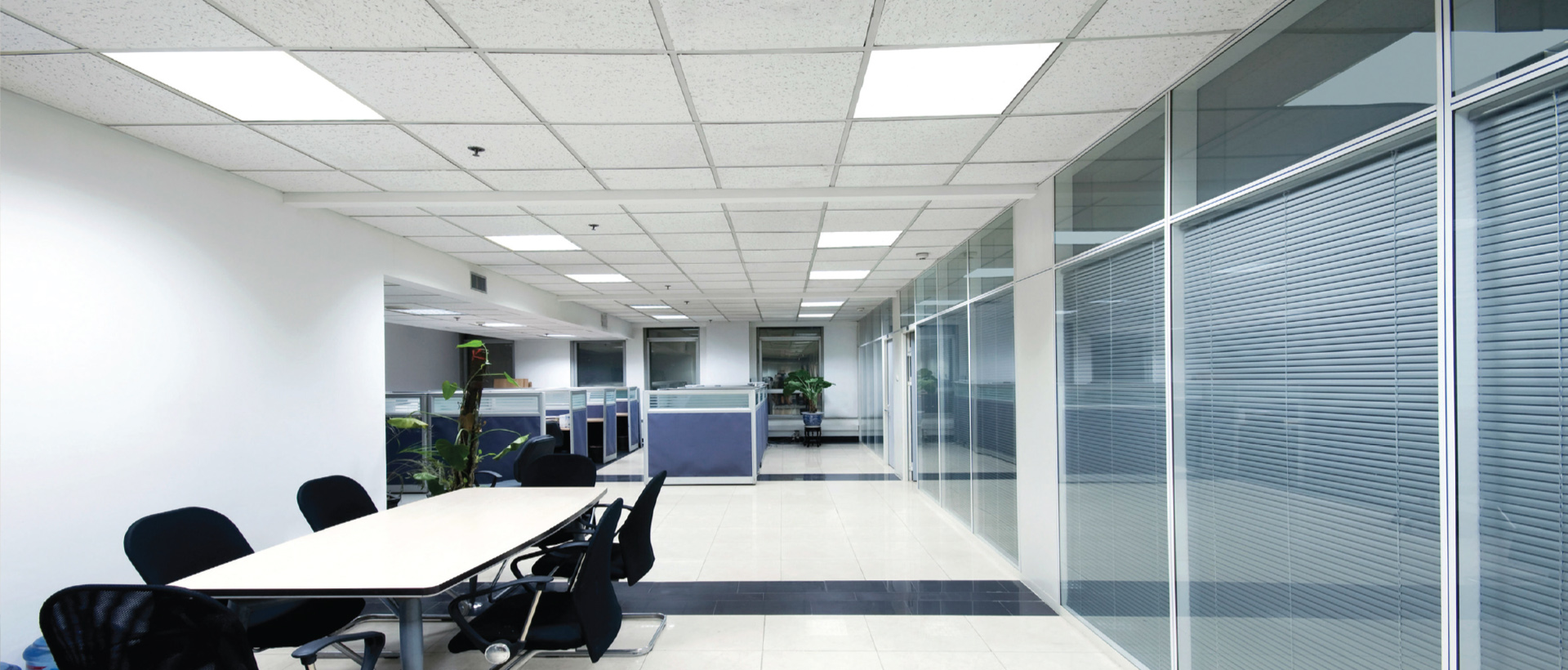

Office, Retail Sector, Receptions, Software industry, Commercial & Business Centers.

Available Finish
White epoxy polyester powder coating.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

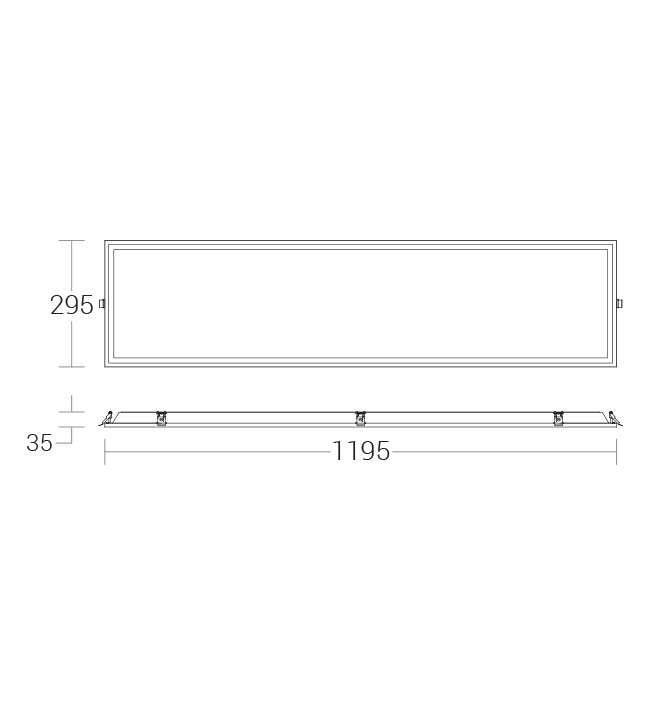

KL-228740W LED WW,NW,CW BA:120°, Translucent PolystyreneC.O.D : 1175 x 275mmKL-2287-BA120°-WW.IES
KL-2287-BA120°-CW.IES
KL-2287-BA120°-NW.IES
KL-2287-BA120°-WW.PDF
KL-2287-BA120°-CW.PDF
KL-2287-BA120°-NW.PDF
2287.pdf
